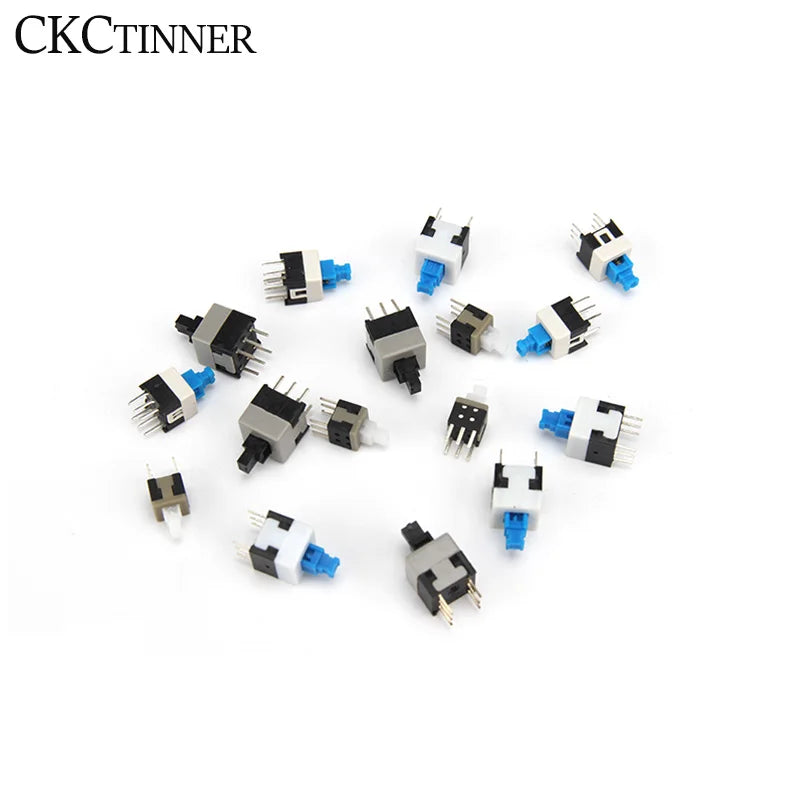

10PCS Self-Locking Tactile Push Button Micro Switch Kit – 6 Pin
This versatile 10-piece kit of self-locking tactile push button micro switches is perfect for electronics hobbyists, makers, engineers, and DIY enthusiasts. Available in four compact sizes — 5.8×5.8mm, 7×7mm, 8×8mm, and 8.5×8.5mm — these 6-pin switches are designed for reliable performance across a wide range of electronics projects, circuit boards, and control panels. Made in Mainland China.
Key Features
- Multi-Size Kit: Includes switches in 5.8×5.8mm, 7×7mm, 8×8mm, and 8.5×8.5mm sizes to suit various PCB layouts.
- Self-Locking Mechanism: Stays engaged on press and releases on the next press — ideal for toggle-style control applications.
- 6-Pin Design: Provides extra contact points for secure and stable circuit connections.
- Wide Operating Temperature: Performs reliably from -40°C to +70°C, suited for both indoor and outdoor electronics builds.
- Durable Plastic Housing: Lightweight yet sturdy construction for long-lasting use.
- CCC Certified: Meets Chinese Compulsory Certification safety standards.
- Long Service Life: Rated for up to 10,000 actuations.
Technical Specifications
- Sizes: 5.8×5.8mm | 7×7mm | 8×8mm | 8.5×8.5mm
- Pin Count: 6 Pin
- Rated Load: DC 12V / 0.1A
- Contact Resistance: ≤200MΩ
- Withstand Voltage: AC250V (50Hz) / min
- Actuation Force: 250 ± 50g
- Insulation Resistance: ≥100MΩ
- Operating Temperature: -40°C to +70°C
- Service Life: 10,000 cycles
- Material: Plastic
- Certification: CCC
- Warranty: 1 Year
- Package Contents: 10 pcs (also available in 50 pcs)
- Country of Origin: Made in Mainland China
Common Applications
- DIY electronics and prototyping projects
- PCB circuit board assembly
- Arduino, Raspberry Pi, and microcontroller builds
- Home automation systems
- Consumer electronics repairs and modifications
- Industrial control panels and equipment
Related Products You May Like
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What sizes are included in this tactile push button micro switch kit?
A: This 10-piece kit includes self-locking tactile micro switches in four sizes: 5.8×5.8mm, 7×7mm, 8×8mm, and 8.5×8.5mm. This variety makes the kit ideal for use across different PCB layouts and electronics project requirements.
Q: What is the difference between a self-locking and a momentary push button switch?
A: A self-locking push button switch stays in its pressed (ON) position after you press it and returns to the OFF position when pressed again — much like a ballpoint pen click mechanism. A momentary switch only stays active while held down. These 6-pin switches use the self-locking design, making them great for toggle-on, toggle-off control applications.
Q: Are these micro switches compatible with Arduino or Raspberry Pi projects?
A: Yes! These 6-pin tactile push button switches are rated at DC 12V / 0.1A and are perfectly suited for use in Arduino, Raspberry Pi, and other microcontroller-based DIY electronics builds. Their compact sizes make them easy to integrate on standard breadboards and PCBs.
Q: How many times can these switches be actuated before wearing out?
A: Each switch in this kit is rated for a service life of up to 10,000 actuation cycles, ensuring long-lasting performance for your electronics projects and repairs.
