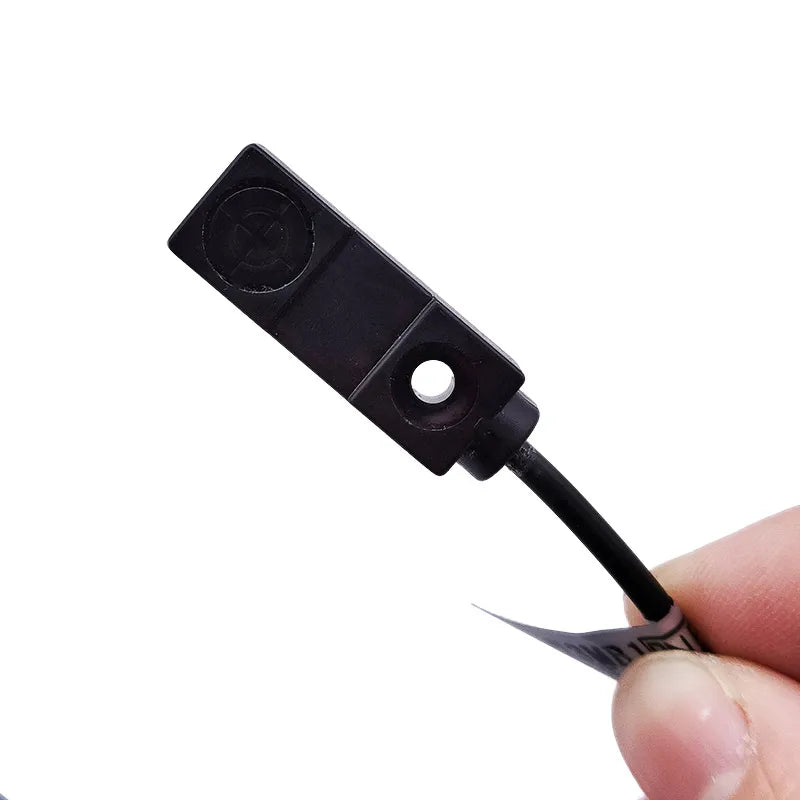

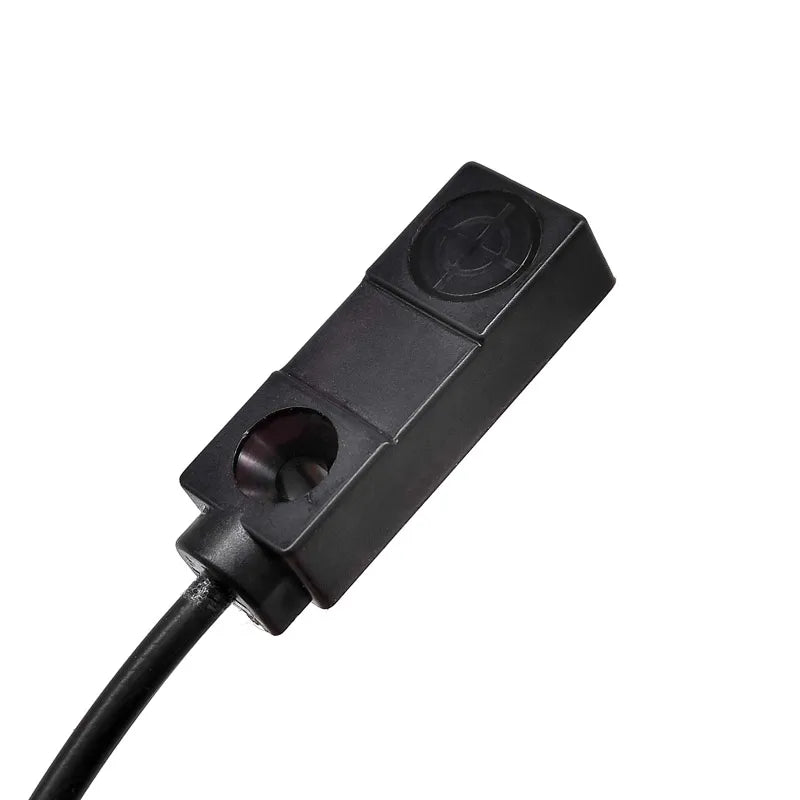

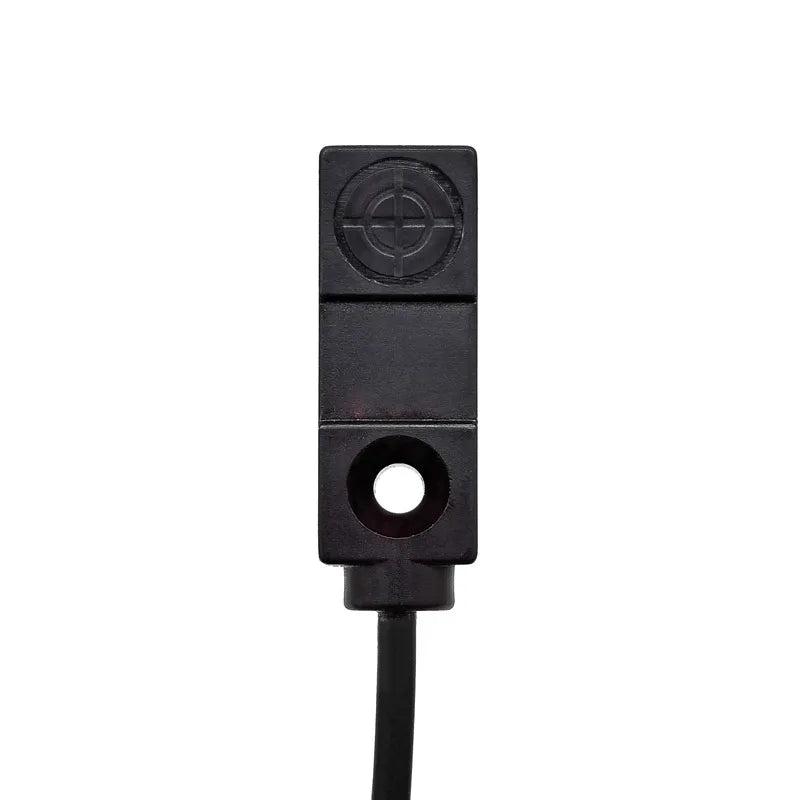

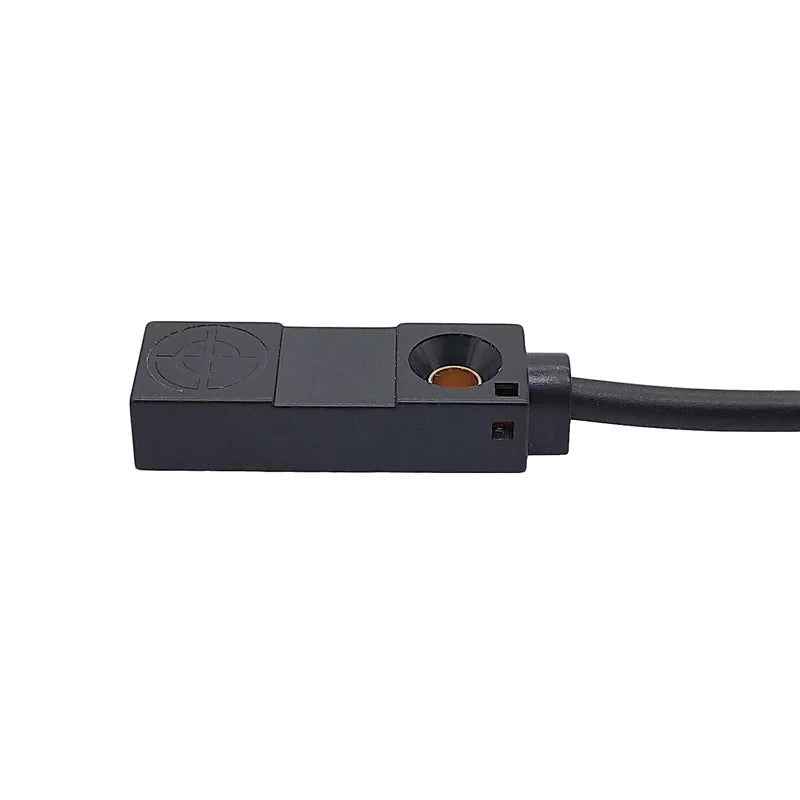

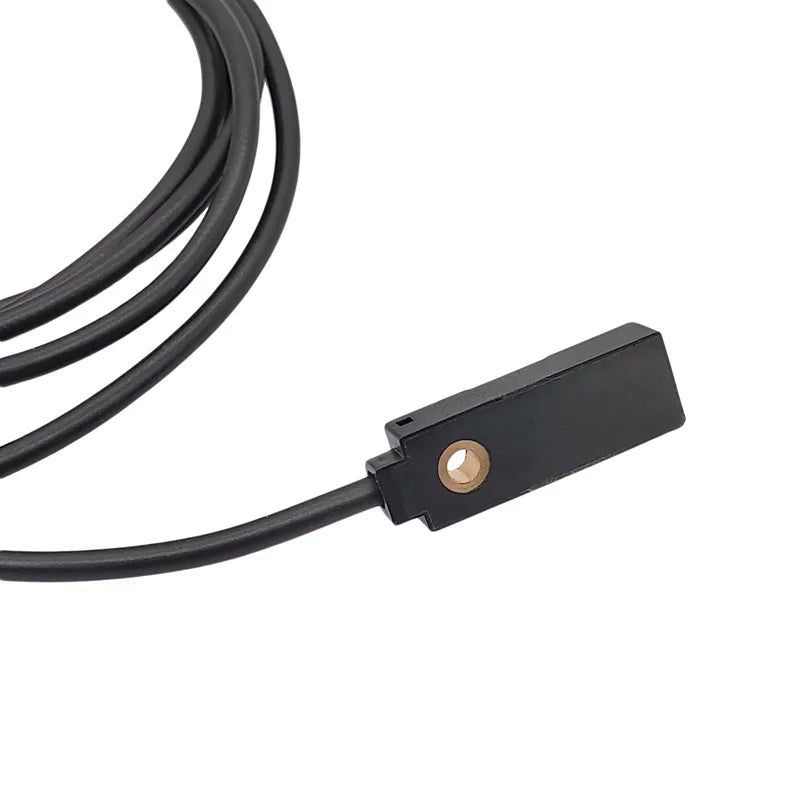

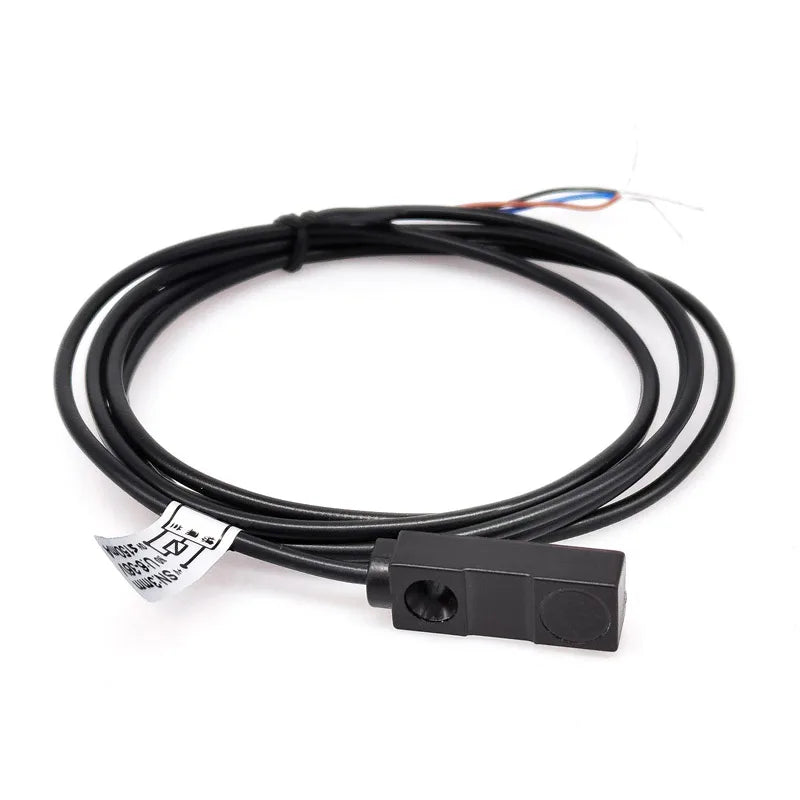

CNMAWAY 10-Pack Inductive Proximity Sensors – TL-W Series

Upgrade your automation and detection setups with this 10-piece pack of high-sensitivity inductive proximity sensors from CNMAWAY. Compatible with the popular TL-W3M and TL-W1R5 series, these 3-wire sensors support both NPN and PNP output configurations as well as Normally Open (NO) and Normally Closed (NC) modes — giving you the flexibility to integrate them into virtually any industrial or DIY control circuit.

Designed for reliable, contactless metal detection, these sensors deliver fast response times and robust IP67-rated protection, making them ideal for factory automation, conveyor systems, machine tooling, robotics, and more. CE certified for peace of mind.

Made in Mainland China.

Key Specifications

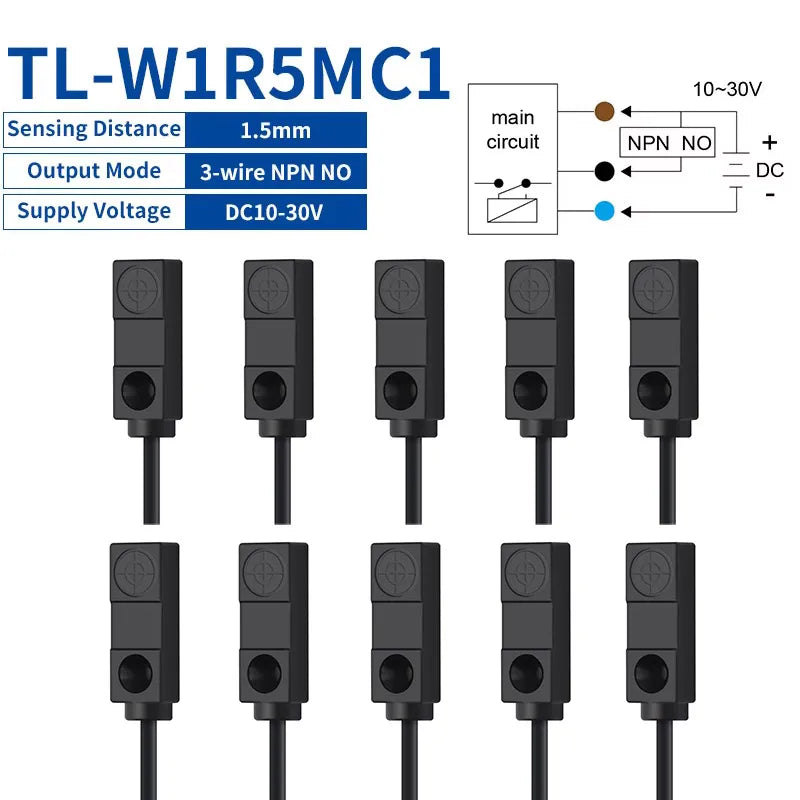

• Model: TL-W5MC1 (TL-W3M / TL-W1R5 Series)
• Output Type: 3-Wire NPN / PNP, NO / NC
• Working Voltage: 10–24 VDC
• Working / Max Load Current: 300 mA
• Switching Frequency: 1 kHz
• Response Time: <0.5 ms
• Response Frequency: 50 Hz
• Detection Distance: 3 mm / 5 mm
• Insulation Resistance: 50 mΩ
• Protection Level: IP67 (dust-tight & water-resistant)
• Working Temperature: -25°C to +75°C
• Material: ABS Plastic
• Indicator: LED status light
• Reverse Polarity Protection: Yes
• Certification: CE
• Warranty: 1 Year

Why Choose These Proximity Sensors?

• ✅ High Sensitivity: Accurately detects metal targets at 3–5 mm range with sub-millisecond response
• ✅ Versatile Wiring: Supports NPN & PNP outputs plus NO & NC configurations for maximum circuit compatibility
• ✅ IP67 Rated: Fully protected against dust ingress and temporary water immersion — built for tough environments
• ✅ Reverse Polarity Protection: Prevents damage from accidental miswiring
• ✅ LED Indicator: Instant visual confirmation of sensor status during commissioning and operation
• ✅ Value Pack: 10 sensors per pack — ideal for prototyping, production lines, or keeping spares on hand

Typical Applications

• Industrial conveyor belt & part-counting systems
• CNC machine tooling & limit detection
• Robotic arm positioning
• Automated assembly & packaging lines
• DIY electronics & automation projects

Related Products You May Like

• Electromagnetic Induction Tester – Coil & Circuit Fault Detector
• Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
• 360° Bicycle Chain Cleaner Tool | Bike Gear Cleaning Kit

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What is the difference between NPN and PNP output on these inductive proximity sensors?

A: NPN (sinking) output connects the load between the sensor output and the positive supply, pulling the output to ground when activated. PNP (sourcing) output connects the load between the output and ground, supplying a positive voltage when activated. Choose NPN or PNP based on your controller's input type (e.g., PLCs typically specify which they require). Both configurations are available in this TL-W series 10-pack.

Q: What materials can these proximity sensors detect?

A: As inductive proximity sensors, these devices detect ferrous and non-ferrous metals — including steel, iron, aluminum, copper, and brass — without physical contact. They are not suitable for detecting plastic, wood, or other non-metallic materials.

Q: Are these sensors suitable for outdoor or wet environments?

A: Yes. With an IP67 protection rating, these sensors are fully protected against dust and can withstand temporary immersion in water (up to 1 metre for 30 minutes). They are well-suited for industrial environments exposed to coolant splashes, dust, or humidity. The operating temperature range of -25°C to +75°C also makes them reliable in both cold and warm conditions.

Q: How many sensors are included in one order?

A: Each order includes 10 inductive proximity sensors of the TL-W series (model TL-W5MC1), making it an excellent value pack for production lines, maintenance stock, or prototyping multiple control circuits simultaneously.
