100W Type-C PD Fast Charger Decoy Board – Fixed Voltage Power Module

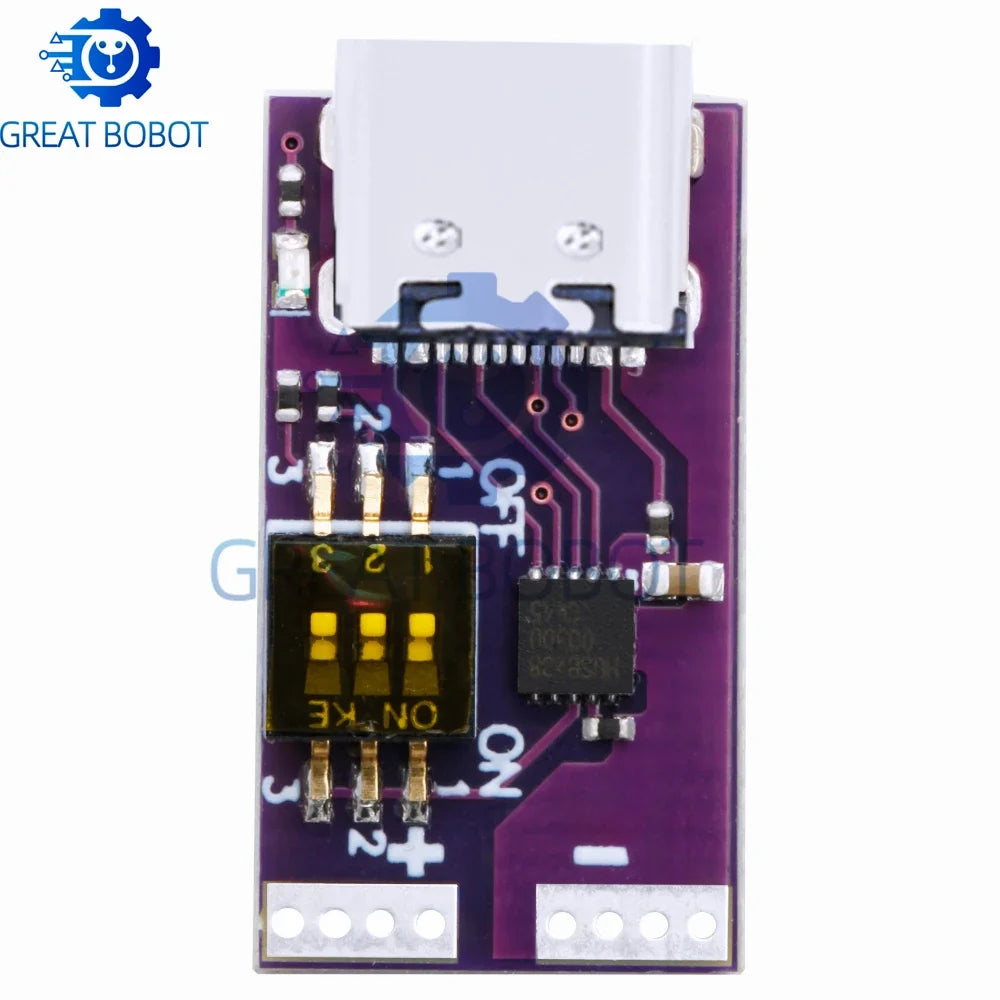

Unlock the full potential of USB Power Delivery with this 100W Type-C PD Decoy Board. Designed for makers, engineers, and electronics enthusiasts, this compact SMD module lets you trigger and draw a fixed voltage output (5V, 9V, 12V, 15V, or 20V) from any PD-compatible USB-C charger — no microcontroller required. Whether you're powering a DC motor, LED lighting strip, laptop, or custom electronics project, this board delivers stable, high-current output up to 5A with ease.
Key Features

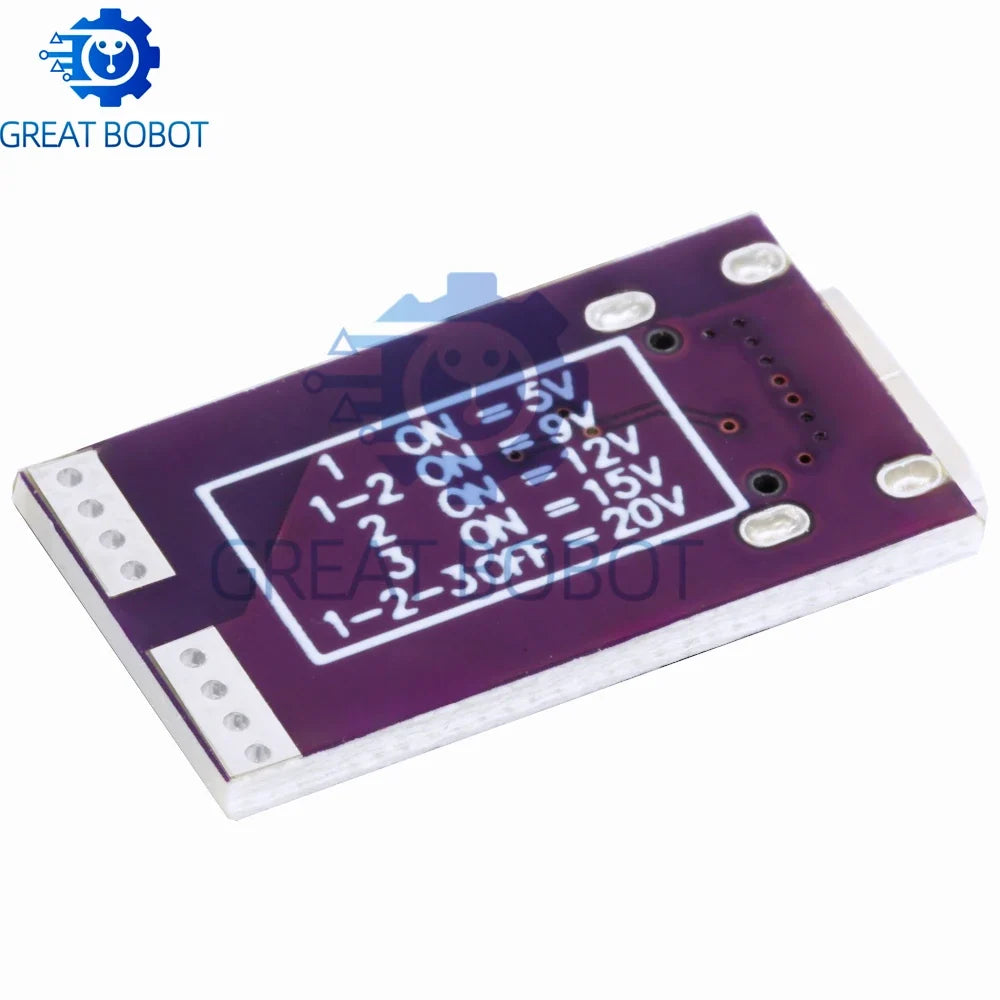

- Multi-Voltage Selection: Supports fixed output voltages of 5V, 9V, 12V, 15V, and 20V — simply select the voltage you need for your project.
- High Power Output: Up to 100W (20V × 5A), making it suitable for demanding applications including motors, LED arrays, and laptop power circuits.
- USB-C PD Protocol Trigger: Communicates directly with USB Power Delivery chargers to negotiate and lock in your desired voltage output automatically.
- Wide Operating Temperature: Rated 0–90°C for reliable performance across a broad range of environments and project enclosures.

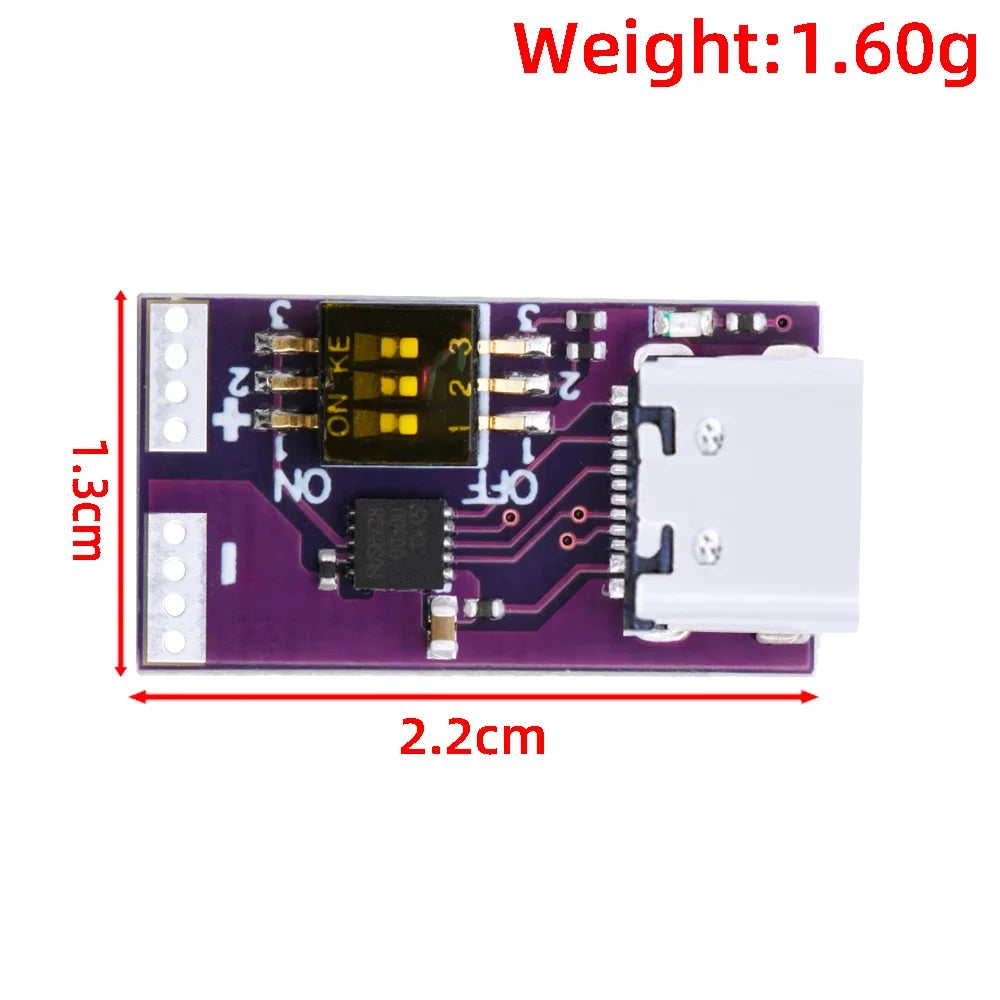

- Compact SMD Design: Small form factor makes it easy to integrate into custom PCBs, prototype boards, or compact enclosures.
- Customizable: Suitable for tailored applications — configure for the voltage your circuit demands.
- Broad Application: Compatible with DC laptops, motors, LED lighting, and general-purpose electronics requiring a stable DC supply.
Specifications
| Input | USB Type-C (PD-compatible charger required) |
| Output Voltage Options | 5V / 9V / 12V / 15V / 20V (fixed, selectable) |
| Maximum Output Current | 5A |
| Maximum Power | 100W |
| Package Type | SMD Module |
| Operating Temperature | 0°C – 90°C |
| High-Concern Chemicals | None |
| Condition | New |
Made in Mainland China.
What Can You Power With It?
This versatile decoy board opens up a world of DIY and professional electronics possibilities:
- ✅ DC Laptops & Mini PCs (via 20V output)
- ✅ LED Strip Lights & Panels (12V / 5V)
- ✅ DC Motors & Actuators
- ✅ Custom power supply benches
- ✅ Fan controllers and cooling systems
- ✅ Arduino / Raspberry Pi power supply projects
Related Products You May Like
- Electromagnetic Induction Tester – Coil & Circuit Fault Detector
- Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool
- Clip-On Car Fan LED Display 199 Speeds | USB & Type-C
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What type of charger is required to use this PD decoy board module?
A: You need a USB Power Delivery (PD) compatible Type-C charger rated at or above your desired output voltage and wattage. For example, to achieve 20V 5A (100W), use a 100W PD charger. The decoy board triggers the PD negotiation protocol automatically to lock in the selected fixed voltage.
Q: Can I use this module to power a 12V LED light strip or DC motor?
A: Absolutely. The board supports a fixed 12V output option, making it ideal for powering 12V LED strips, DC motors, and other 12V electronics — simply configure the board for 12V and connect to your compatible USB-C PD charger.
Q: Is soldering required to use this decoy board?
A: This is an SMD-type module intended for integration into electronics projects. Basic soldering skills are recommended for connecting output wires or integrating the board into a custom PCB or prototype enclosure.
Q: Is this product safe to use and does it contain any hazardous chemicals?
A: Yes, this module is RoHS-compliant with no high-concern chemicals. Always follow standard electronics safety practices when working with high-current DC circuits and ensure your power source matches the module's rated specifications.
