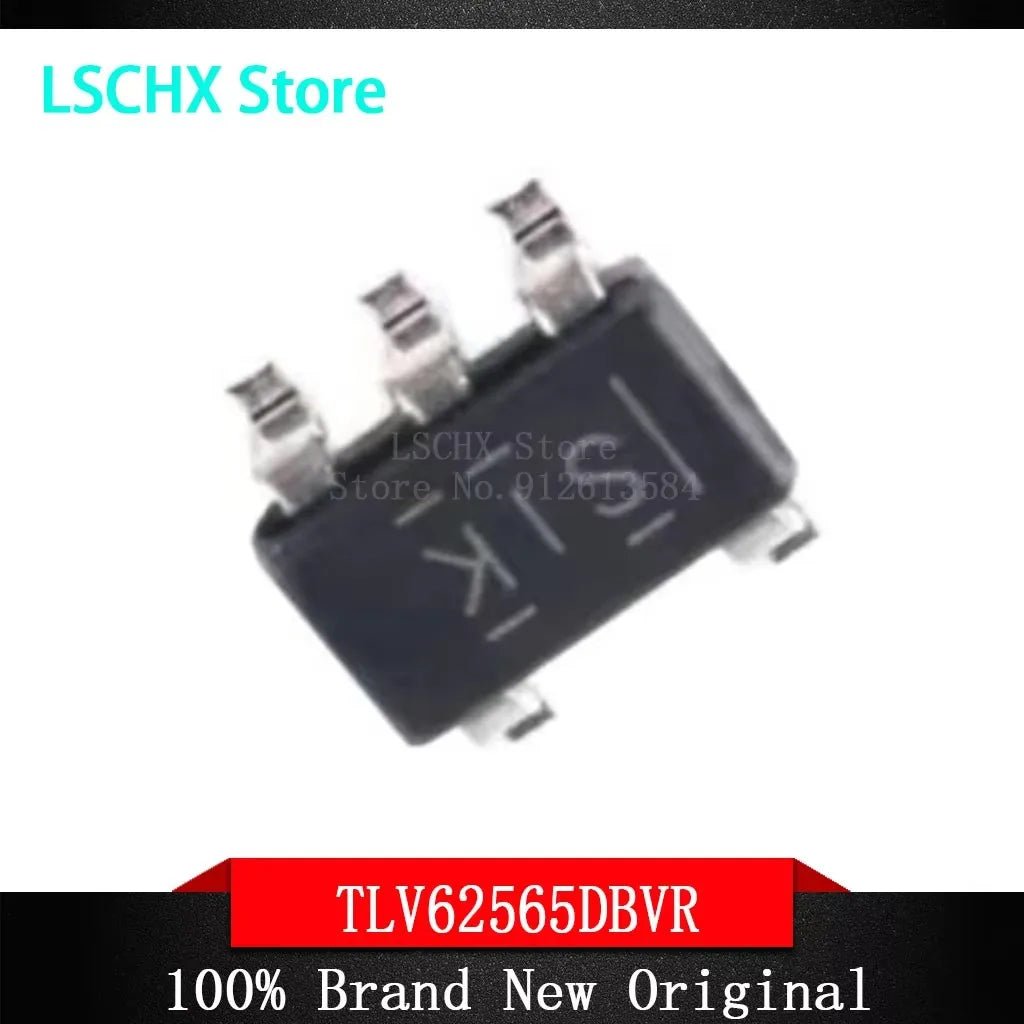

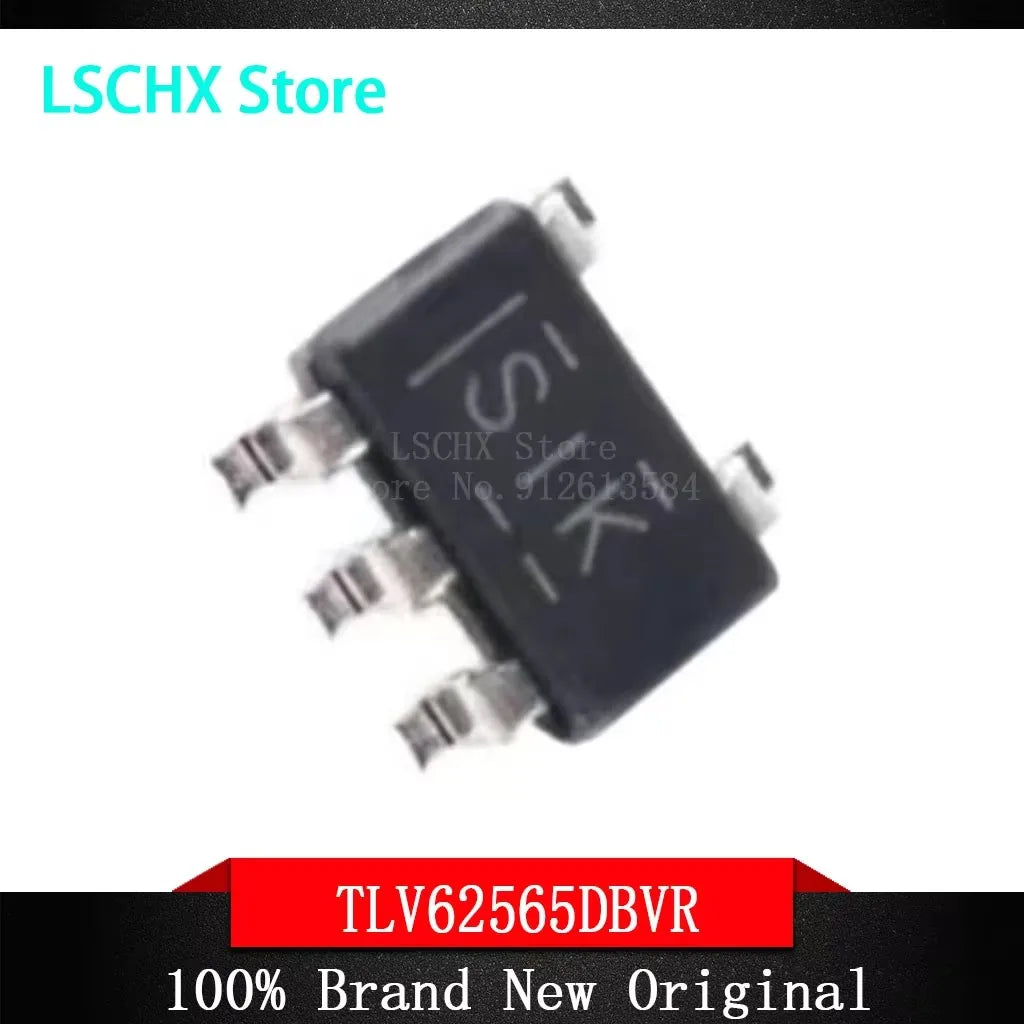

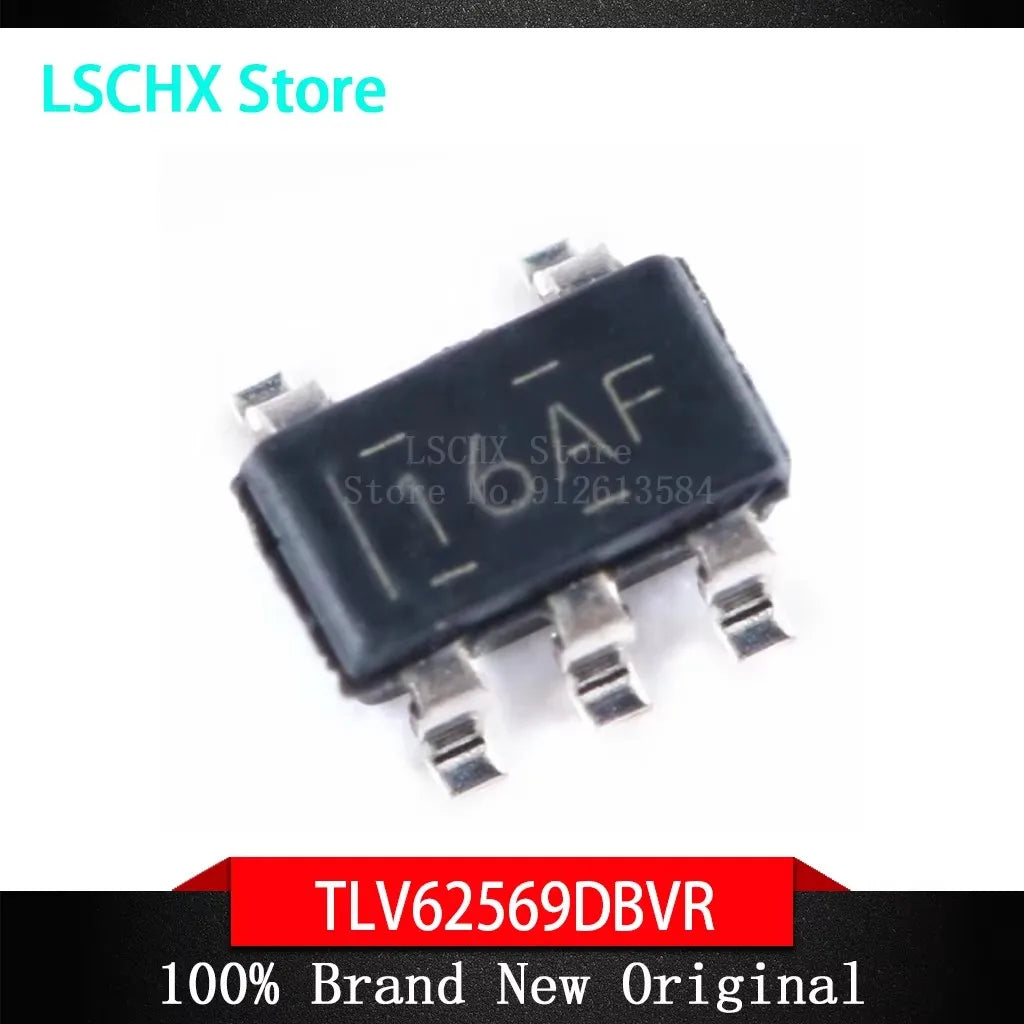

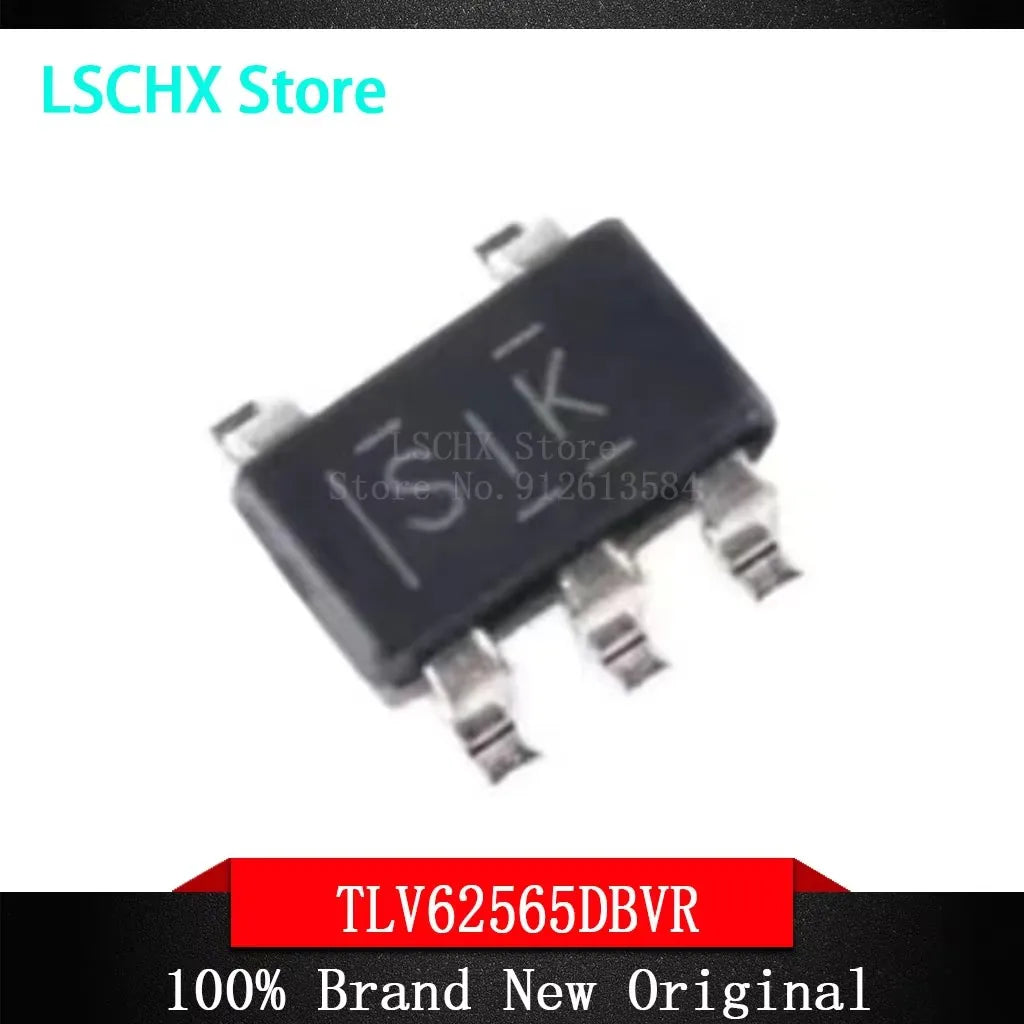

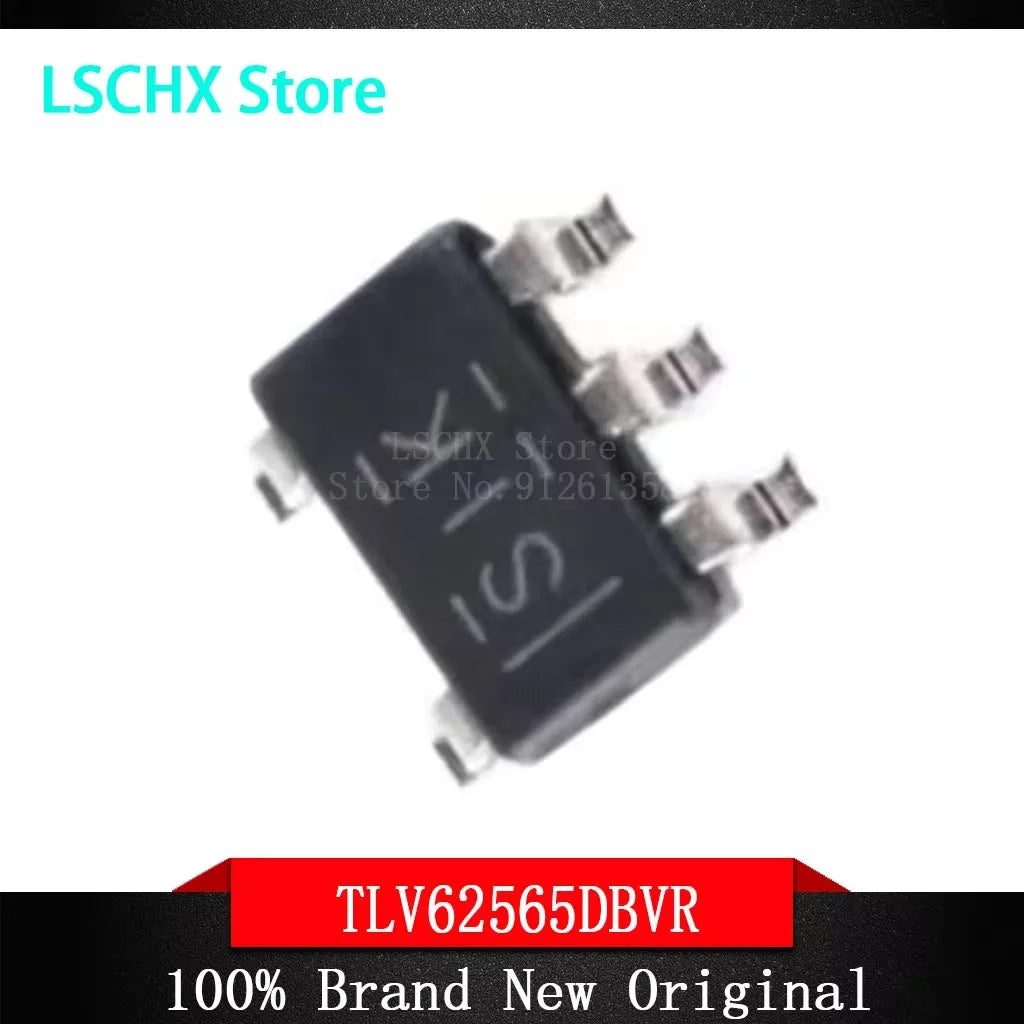

TLV6256x / TLV6258x Series DC-DC Buck Converter ICs — 10-Piece Pack

Keep your electronics projects running efficiently with this 10-piece assortment of TLV62565, TLV62566, TLV62568, TLV62569, and TLV62585 series synchronous step-down (buck) converter chips. These compact, high-efficiency ICs are engineered for general-purpose power management applications in portable devices, IoT modules, wearables, and embedded systems.

Key Features

• Multiple Models Included: Covers TLV62569DBVR, TLV62565DBVR, TLV62568DRLR, TLV62566DBVR, TLV62585RWTR, TLV62585PDRLR, TLV62569DRLR, and TLV62565DBVR variants
• Low Voltage Operation: Designed for low-voltage applications below 50Vac or 75Vdc (EU LVD compliant)
• High Efficiency: Synchronous buck topology minimizes switching losses for longer battery life in portable designs
• Compact Packages: Available in SOT-23 (DBVR) and DRL (DRLR / RWTR / PDRLR) packages — ideal for space-constrained PCB layouts
• General Purpose Use: Suitable for a wide range of power management applications in consumer electronics, IoT, and industrial designs
• Quantity: 10 pieces per pack — great for prototyping, repairs, or component stocking

Product Specifications

Who Is This For?

These ICs are ideal for electronics engineers, hobbyists, PCB designers, and repair technicians who need reliable, compact synchronous buck converter chips for prototyping or production builds. Whether you're designing a new embedded power rail or replacing a faulty component on a board, this pack gives you versatile options across the TLV6256x and TLV6258x families.

Related Products You May Like

• Electromagnetic Induction Tester – Coil & Circuit Fault Detector
• Air Compressor Pressure Gauge 0-10/0-12/0-25 Bar | DIY Tool

Learn more: ENERGY STAR product efficiency guidance

Frequently Asked Questions

Q: What models are included in this 10-piece TLV6256x / TLV6258x chip pack?

A: The pack includes chips from the following models: TLV62569DBVR, TLV62565DBVR, TLV62568DRLR, TLV62566DBVR, TLV62585RWTR, TLV62585PDRLR, and TLV62569DRLR. The exact mix across the 10 pieces may vary — these are general-purpose synchronous buck converter ICs suited for a wide range of low-voltage power management applications.

Q: What package types do these DC-DC buck converter chips come in?

A: These chips are available in several compact SMD packages. The DBVR suffix indicates an SOT-23-5 package, the DRLR suffix indicates a small X2SON package, and the RWTR/PDRLR variants come in WSON packages. All are suitable for surface-mount PCB assembly.

Q: Are these chips suitable for IoT and portable electronics projects?

A: Yes — the TLV6256x and TLV6258x series are widely used in battery-powered portable devices, IoT sensors, wearables, and embedded systems thanks to their high efficiency, tiny footprint, and low quiescent current characteristics. They operate at low voltages, making them excellent for modern energy-conscious designs.

Q: What is the country of origin for these chips?

A: These chips are made in Mainland China.
